Specifications for

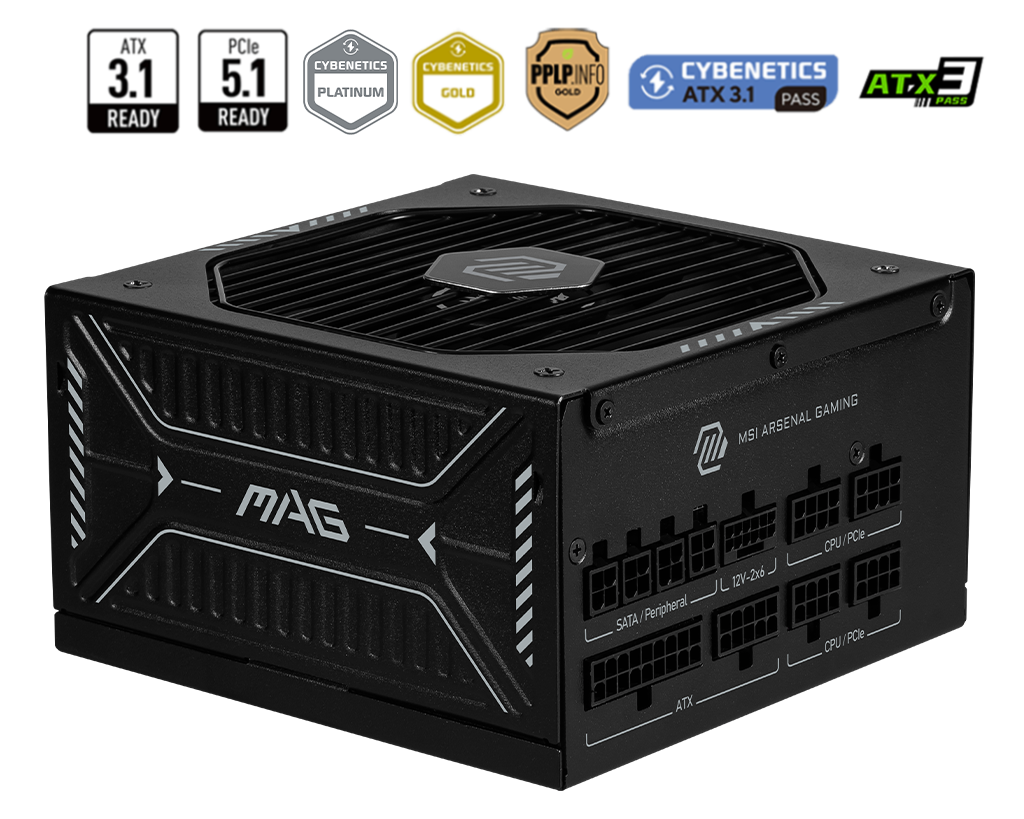

MAG A1000GLS PCIE5
Modular
Modular
Yes (full modular)
Input Voltage Range
Input Voltage Range
100-240V~
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Power Excursion
Power Excursion
2200W (*up to 220% of the PSU's rated power for 100μs)
Power Watt
Power Watt
1000W
Input Frequency
Input Frequency
47-63 Hz
EPS (8 pin)
EPS (8 pin)
2
Efficiency
Efficiency
80 PLUS Gold (up to 90%)
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1 (600W)
ATX (24 pin)
ATX (24 pin)
1
Fan Size
Fan Size
135 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
Dimension
Dimension
150 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
11
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
FDD (4 pin)
FDD (4 pin)
1
