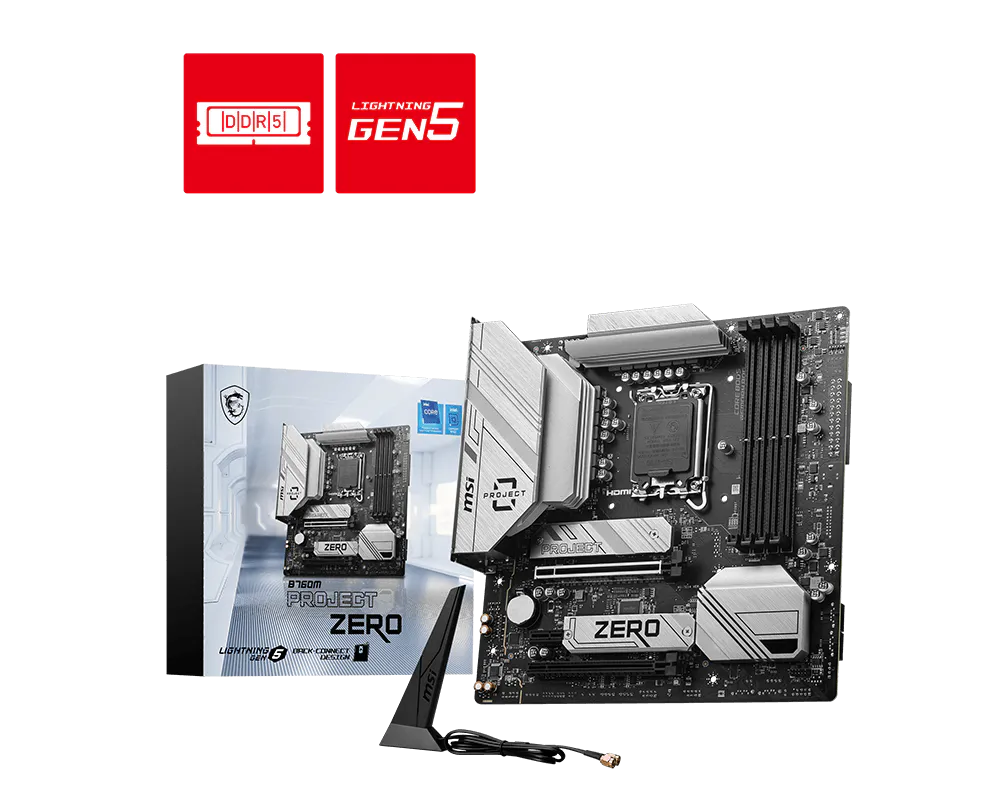

B760M PROJECT ZERO

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Realtek^® 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 2.0 DisplayPort 1.4 USB 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 20Gbps Type-C Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
BOX CONTENT
PCB Info	mATX 243.84mmx243.84mm
