Specifications for

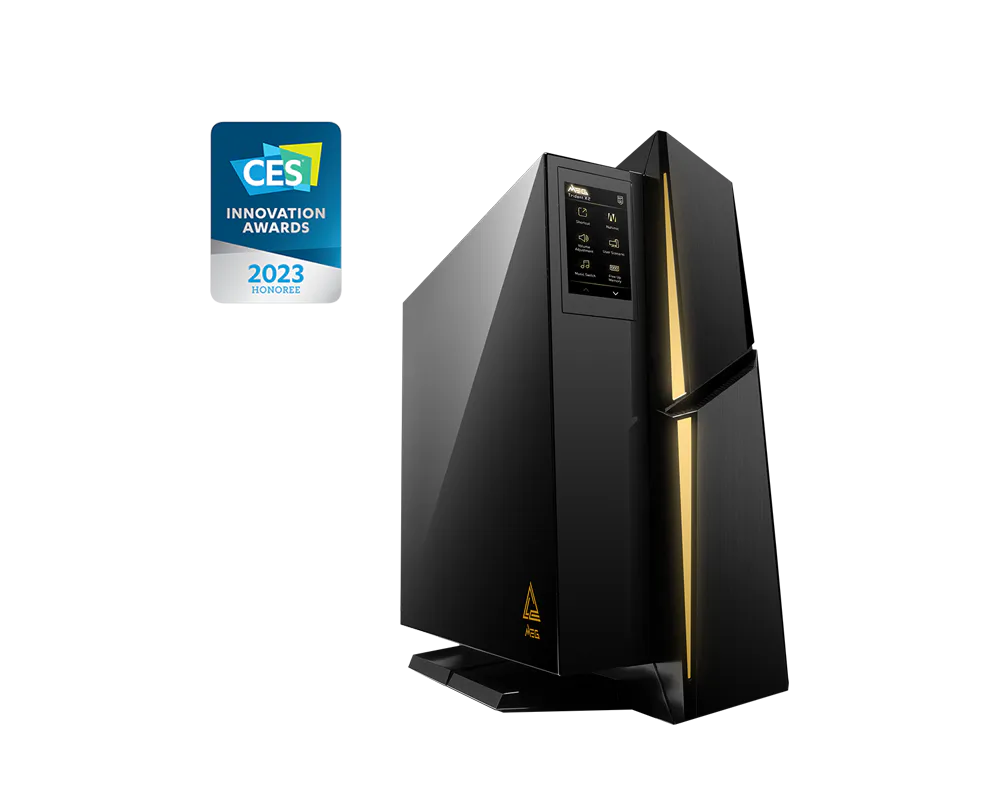

MEG Trident X2 13th
MEG Trident X2 13NUI-035IT
MEG Trident X2 13NUG-037IT
MEG Trident X2 13NUG-059IT
MEG Trident X2 13NUI-035IT
MEG Trident X2 13NUF-225IT
MEG Trident X2 13NUG-037IT
MEG Trident X2 13NUI-247IT
MEG Trident X2 13NUF-225IT
Marketing Name
MEG Trident X2 13NUI-035IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i9-13900KF
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4090 24G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 NVMe M.2-2280 M-KEY SSD
N/A (N/A) N/A N/A HDD
N/A (N/A) N/A N/A HDD
Expansion Slots
2x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 1000W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-035
EAN
4711377033237
Marketing Name
MEG Trident X2 13NUG-037IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i7-13700KF
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4080 16GB 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 NVMe M.2-2280 M-KEY SSD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 1000W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-037
EAN
4711377033251
Marketing Name
MEG Trident X2 13NUG-059IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i7-13700KF
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4080 16GB 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 NVMe M.2-2280 M-KEY SSD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 1000W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-059
EAN
4711377033251
Marketing Name
MEG Trident X2 13NUI-035IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i9-13900KF
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4090 24G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 NVMe M.2-2280 M-KEY SSD
N/A (N/A) N/A N/A HDD
N/A (N/A) N/A N/A HDD
Expansion Slots
2x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
x USB 3.2 Gen 2x2 (20G) Type C (R)
x USB 3.2 Gen 2 (10G) Type C (R)
x USB 3.2 Gen 2 (10G) Type A (R)
x USB 3.2 Gen 1 (5G) Type C (R)
x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 1000W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-086
EAN
4711377033237
Marketing Name
MEG Trident X2 13NUF-225IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i7-13700KF
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4070 Ti 12G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 w/o DRAM NVMe M.2-2280 M-KEY SSD
N/A (N/A) N/A N/A HDD
N/A (N/A) N/A N/A HDD
Expansion Slots
2x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 850W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-225
EAN
4711377101639
Marketing Name
MEG Trident X2 13NUG-037IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i7-13700KF
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4080 16GB 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 w/o DRAM NVMe M.2-2280 M-KEY SSD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 850W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-243
EAN
4711377033251
Marketing Name
MEG Trident X2 13NUI-247IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i9-13900KF
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
3.0GHz
( 36 MB Intel® Smart Cache , up to 5.80 GHz , 24 Cores , 32 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4090 24G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
64GB(32GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
1TB (1TB*1) PCIe GEN4x4 NVMe M.2-2280 M-KEY SSD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
2TB*1 (7200RPM) 3.5 inch SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 1000W 80plus Gold POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-247
EAN
4711377119177
Marketing Name
MEG Trident X2 13NUF-225IT
CPU Cooler
Liquid cooling
Communications
Wi-Fi 6E+BT
Processor
Intel Core i7-13700KF
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
3.4GHz
( 30 MB Intel® Smart Cache , up to 5.40 GHz , 16 Cores , 24 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 4070 Ti 12G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2400(4800)MHz U-DIMM
Max 128GB
Storage
2TB (2TB*1) PCIe GEN4x4 w/o DRAM NVMe M.2-2280 M-KEY SSD
N/A (N/A) N/A N/A HDD
N/A (N/A) N/A N/A HDD
Expansion Slots
2x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
x USB 4 (80G) Type C (R)
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
x USB 4 (40G) Type C (R)
x USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
NAx USB 3.2 Gen 1 (5G) Type A (R)
x USB 2.0 Type C (R)
2x USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
NAx Thunderbolt (R)
2x RJ45
NAx VGA out
1x (v1.4)x HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
1x PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
5x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
NAx WiFi Antenna
Power
ATX 850W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI
Color
ID1/Black-Black-Black
Warranty
N/A
Part No
9S6-B92211-286
EAN
4711377101639
